Track Shoe Bolt 3
Idler Assembly for Hyundai R210 Excavator - Complete undercarriage component maintaining track tension. Ball bearing construction ensures efficient op
Key Features:
- Diameter: M20 (Standard)
- Head Type: Raised Hex (Dome)
- Part Number: UEC02H01ST
- Thread Pitch: 1.5 mm (Fine)
- Strength Grade: 12.9 (High Tensile)
- Length (Approx.): 57 mm - 62 mm
- Pan-India LogisticsReliable delivery to site
- Expert SupportTechnical guidance on-call
- OEM SupportISO-certified manufacturing
- 12-Month WarrantyOn all structural parts
Idler Assembly for Hyundai R210 Excavator - Complete undercarriage component maintaining track tension. Ball bearing construction ensures efficient operation. Critical for preventing track slack. Essential maintenance component.Sprocket for Hyundai R210 Excavator - Drive component transmitting power to track system. Precision-cast construction provides durability. Essential for excavator propulsion. Heavy-duty design for mining operations.

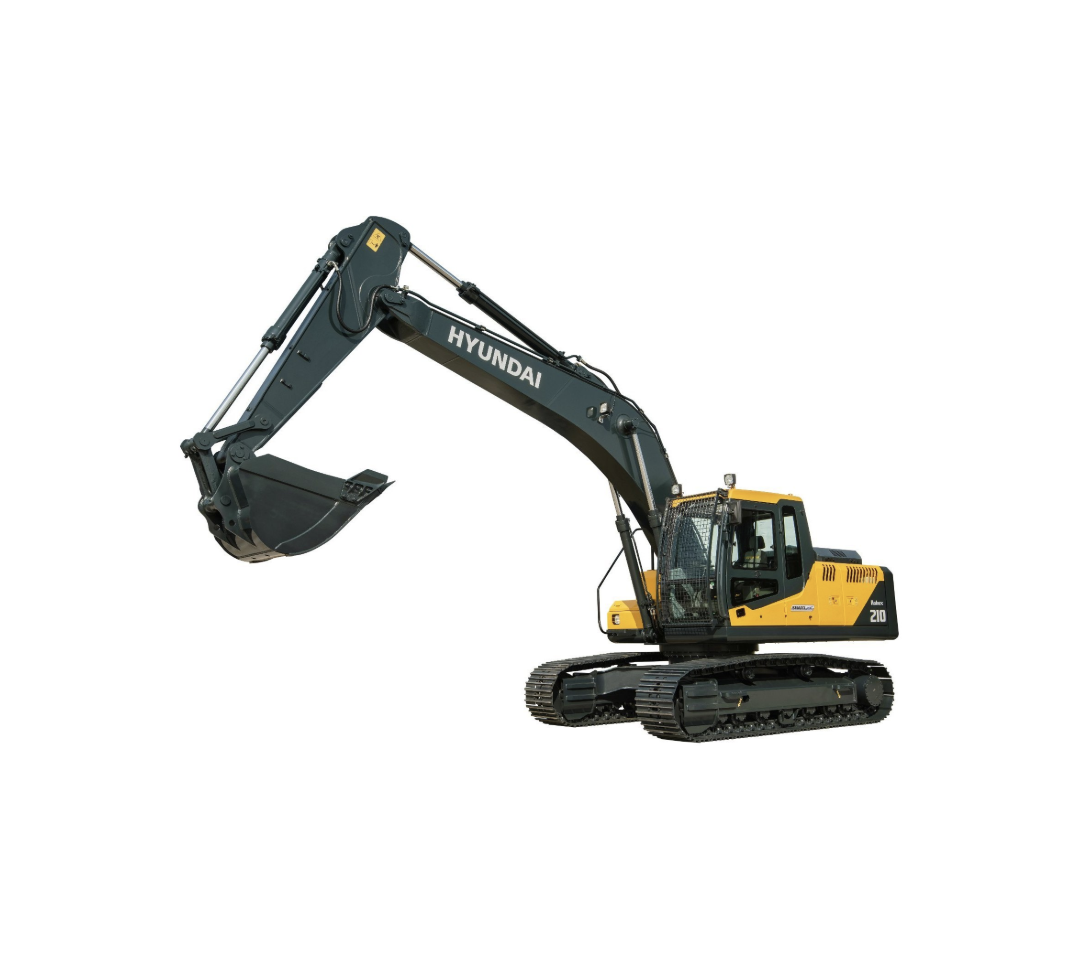

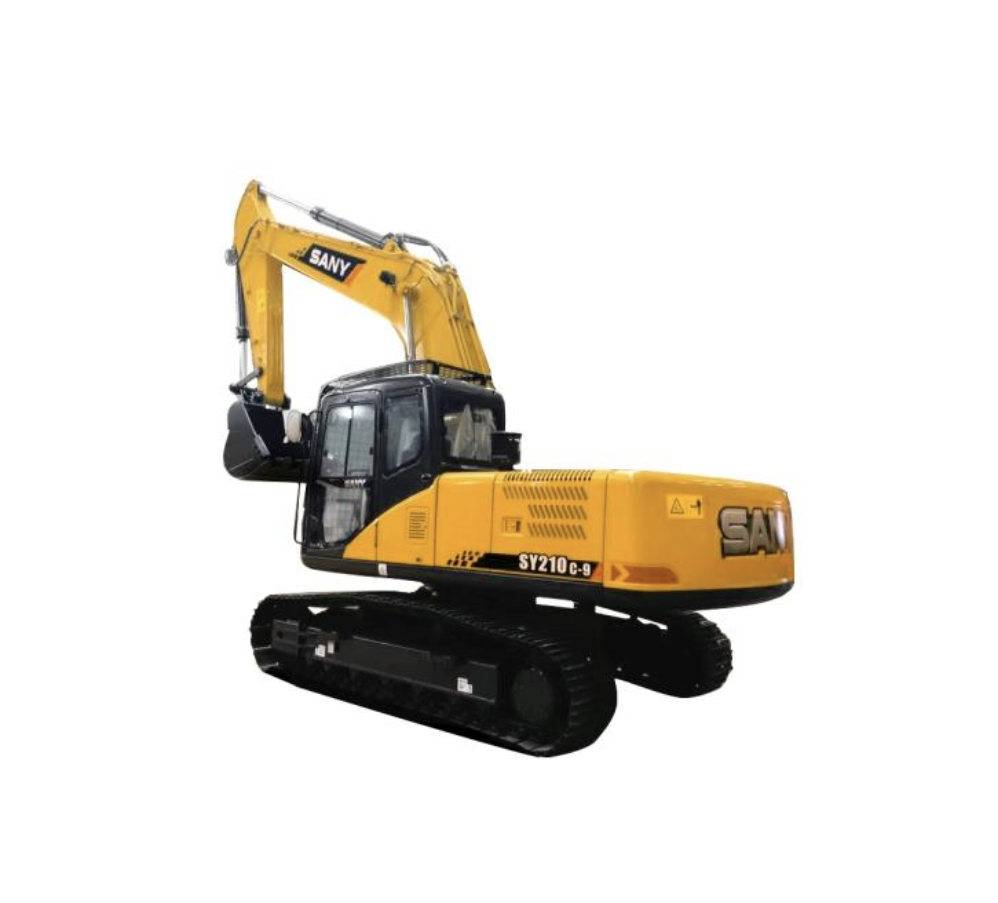

Engineered for a perfect fit on both Hyundai R210 and Sany SY210 platforms, these track shoe bolts are the reliable choice for standard 21-ton excavators. They provide a high-performance, cost-effective replacement for OEM hardware, ensuring your machine stays balanced and stable during precision trenching and loading operations.
Warranty
Replacement Only
Application
Used in the undercarriage system to fasten track shoes during machine operation. Suitable for Hyundai and Sany R210 and SY210 excavators. Installation by skilled technicians is recommended.
Key Features
- Perfectly balanced metallurgy prevents the bolt from being "too brittle" in cold weather or "too soft" in high-impact rock zones.
- Every bolt is stamped with the grade and size for quick verification and quality assurance on the job site.
- Grade 12.9 rating ensures that the bolts can be tightened to the correct tension without the risk of elongation or stripping.
- CNC-rolled threads provide a smooth, burr-free finish for consistent clamping force across all shoes.
- Precision-machined to match the 190mm pitch requirements of Hyundai and Sany undercarriages.
Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
Specifications
Coating
Black Phosphated
Diameter
M20 (Standard)
Material
40Cr / 35CrMo
Head Type
Raised Hex (Dome)
Part Number
UEC02H01ST
Thread Pitch
1.5 mm (Fine)
Strength Grade
12.9 (High Tensile)
Hardness (Core)
HRC 32 � 36
Length (Approx.)
57 mm - 62 mm
Hardness (Surface)
HRC 50 � 55
